1 Meter SOLID RED 1.75mm Bowden Tubing

Name: Capricorn Blue Translucent Bowden Tubing
Brand: Capricorn
SKU: 32611
Price: 11.99 USD
Availability: InStock

Store/Shop by Tubing/Bowden Tubing

SKU 32611

$11.99

New!

Fittings

Please choose

Quantity:

Product Details

Brand: Capricorn

Length: 1 Meter

ID: 2.0mm

OD: 4.0mm

EAN: 0618194322909

Here by popular demand for a limited time!

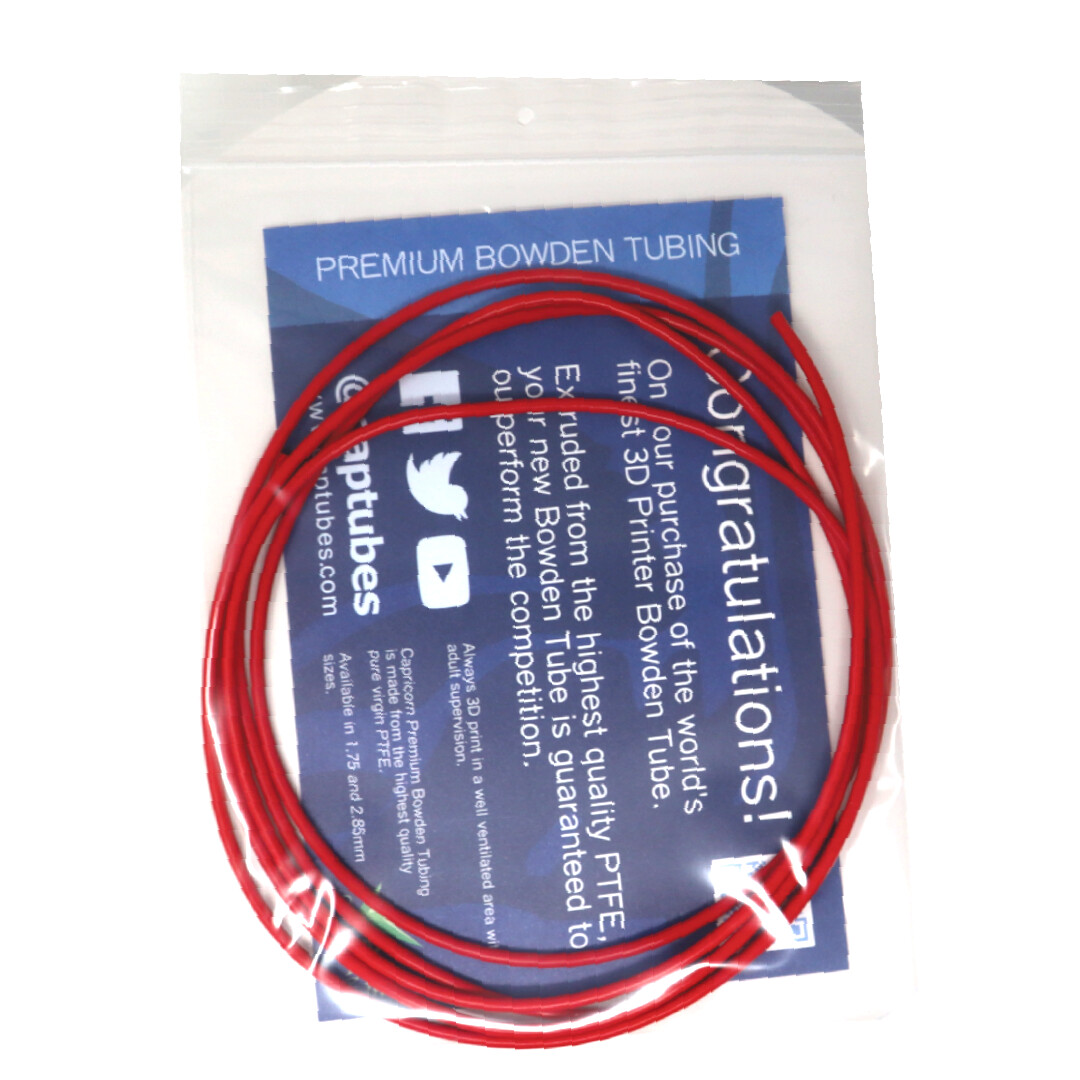

Our beautiful bright solid red tubing is sure to not only make your printer look amazing but improve your print quality as well! Always made from the finest pure virgin PTFE. Guranteed to always be the right diameter and perfectly round!

Each meter of Capricorn tubing comes with one of our Capricorn stickers so you can represent your favorite Bowden Tubing brand!

Get it whiles supplies last!

Data Sheet

		Our Premium TL Series Tubing
	Additives	RED Color
	Best For Chunky Filaments	YES
	Best For Flexible Filaments	NO
	Can See Through	NO
	Pulling Friction^♠	0.8
	Color	Bright Red
	Density (kg/m3)	2100 +/-100
	Hardness	55
	Inner Diameter (mm)	2.05 +/- 0.05
	Linear Thermal Expansion at 250 °C	3.4-3.6%
	Material	Highest Quality Pure Virgin PTFE
	Melting Point (°C)^♥	around 300
	Outer Diameter	3.95 +/- 0.05
	Roundness (ϵ)	< 0.1
	Stiffness^§	Medium
	Thermal Conductivity (W/m-k)	0.25
	Wear Rate (gm/s)	0.01
	Young's Modulus (GPa)^¥	0.5

^♠Pulling Friction is calculated as the average force required to pull 1.2 meters of 1.75mm PLA filament through 1 meter of tubing at a constant speed, relative to 1 meter of cheap white reference tubing. Note that although we observed the friction of the TL series to be about the same or even slightly lower than our XS series, it also has a larger internal diameter.

^§Other Bowden tubes may vary significantly in stiffness, depending on the material from which they're made. Our tubing generally tends to be more flexible than most, with the TL being more flexible than XS.

^¥Young's Modulus (YM) is the measure of elasticity of the material. Our XS Series additives give the PTFE a slightly greater YM than the TL Series.

^♥Temperatures were approximated by heating samples of all tubing simultaneously, observing how quickly each one began to deform. Printer failures may happen at significantly lower temperatures.

Printing high temperature materials may create dangerous off-gassing. Please refer to the Safety Page.
